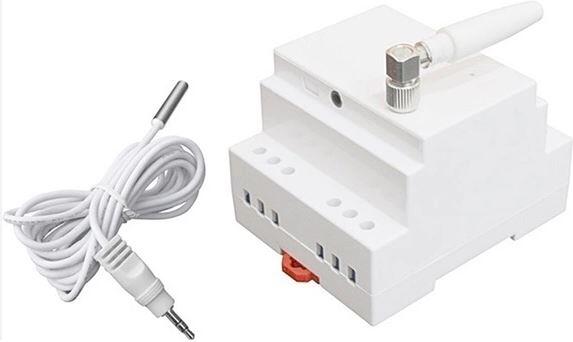

GSM Power management module DIN-Rail - SimPal D210

An all-time solution for door and gate control, remote power control and alarm via SMS and call. This module is mounted on a DIN rail, connected to 230V AC and is equipped with a 230V AC and 12V DC output for remote control of electrical appliances or access control applications. Use the mobile phone for control via SMS. Open the gate with a single call. There are 2 sensor inputs. When a sensor is activated, the alarm output is also activated. At the same time, an SMS is sent. When the temperature sensor is connected, temperature values will also be sent in the SMS. Up to 5 mobile numbers can control the device.

Note: Only the Master user receives SMS when alarm sensors S1 and S2 are activated.

• Switch on/off remotely either via SMS (only master - no guest no.) or call.
• Built-in power supply.
• Temperature determined remote control and alarm when temperature sensor connected.
• Create Power On/Off Schedules.
• 2 sensor input which activates a 12V DC controllable output.
• Access control by call or SMS.
• DIN Rail mounting

• Size: 90 x 70 x 73mm (excl. GSM antenna)
• Max. load 8A 1800W
• Power supply in AC 110~230V
• Power supply out AC 110~230V 8A, DC12V (max 200mA)
• GSM frequency: 850/900/1800/1900Mhz
• SIM card: Standard size
• Sensor input: NO/NC
• Temperature sensor: DS18B20 with stainless steel probe, cable length 2m

Guidance

To allow all calls, the following code must be sent to the device:

#31#1#

As a substitute, 60000192 can be used.
